Antenna Test Chamber

Transmitting station is shown in this photo

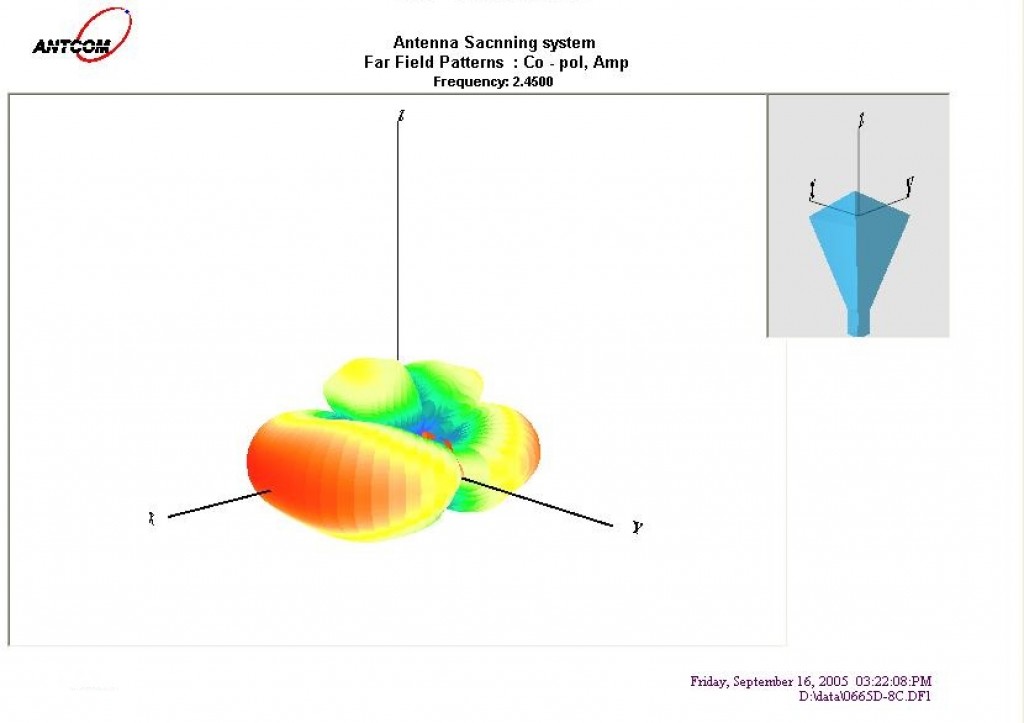

3D Test result

We have imported a most advanced 3 axis far-field antenna scanning system from USA which includes a transmitting & Receiving station, and both stations are installed in our shielded anechoic chamber. This chamber is capable to test antenna frequency range from 0.5GHz & up. The scanning system can scan both E-plane and H-plane pattern and plot the result instantly after finish scanning. The scanned data is stored in the computer based system which allows engineer to recall the tested result whenever needs, and also the tested pattern can be plotted by a printer instantly.
